Product Introduction

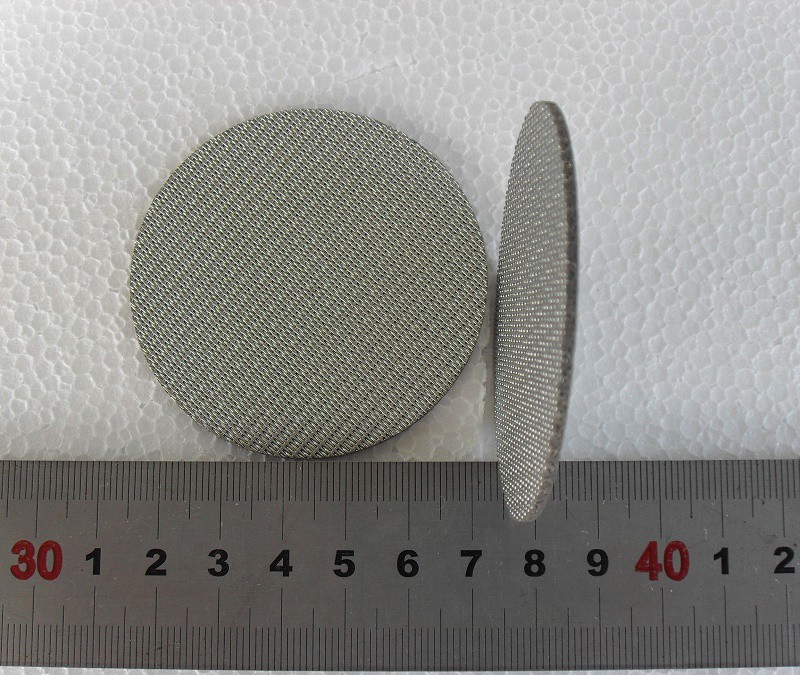

Sintered Mesh Disc for Pharmaceutical is perfect filter element for filtering & cleaning & drying in the three in one or two in one equipment of pharmaceutical, chemical, food industry and etc. The filter material is made of multi-layer stainless steel sintered wire mesh then welded with flange to round disc shape or cone shape, it has good rigidity, easy to clean, easy for installation, excellent filter rating,can be cleaned repeatedly and reusable.
Features and Advantages
1. Mechanical properties
The sintered mesh disk can withstand high pressure differences and does not deform or rupture, suitable for working conditions with large pressure fluctuations or those requiring frequent reverse flushing.
It can withstand intense thermal cycles (repeated high-temperature sterilization) and pressure pulses, with long service life.
It is composed by monolithic sintered metal, there is no risk of "debris" like that of fiber filter materials, ensuring the cleanliness of the downstream fluid.
2. Chemical and thermal stability
It can withstand strong acids, strong bases, organic solvents, and various harsh chemical solutions.
Its service life is longer even in high-temperature environments (typically > 400°C), supports online steam sterilization, and can be used for high-temperature process fluids.
3. Deep filtration and regenerable characteristics
Pollutants are retained inside the filter disc rather than only on the surface, with a higher contaminant retention capacity than membrane filter discs with a surface structure.
It can be thoroughly cleaned and regenerated: After clogging, it can be restored to its flow capacity through reverse flushing, ultrasonic cleaning, high-temperature calcination (to remove organic pollutants), etc., achieving multiple repeated uses.
4. Precise filtration accuracy and high permeability
The filter precision is usually between 1μm and 100μm, belonging to absolute accuracy rating (based on the maximum pore diameter).
High flow rate: Due to its high opening rate and sturdy structure, the initial flow rate is usually greater than that of deep filter elements, with lower pressure drop.
5. Compliant with pharmaceutical regulations
The sintered mesh disk always use pharmaceutical-grade 316L stainless steel, complies with USP Class VI requirements, surface can undergo electrolytic polishing treatment, meets Ra value requirements, easy to clean and sterilize.
