Product Introduction:
Sintered Woven Wire mesh usually be called Standard Five-layers Sintered Woven Wire Mesh, it is made by five-layers mesh sintered in vacuum oven, it consists of protective layer, filter layer, dispersion layer, and two reinforcing layers, they provides excellent performance such as uniform and stable precision and high strength, also because its surface filtration construction and smooth aperture duct, it is good at backwashing and regeneration, so that it has longer service life, especially suitable for continuous and automatic operation, because of these advantage, the sintered woven wire mesh is always be formed, machined and welded, then produced into many kinds of metal filter element, such as wire mesh cartridge filter, wire mesh pleated filter, wire mesh disk filter and etc.

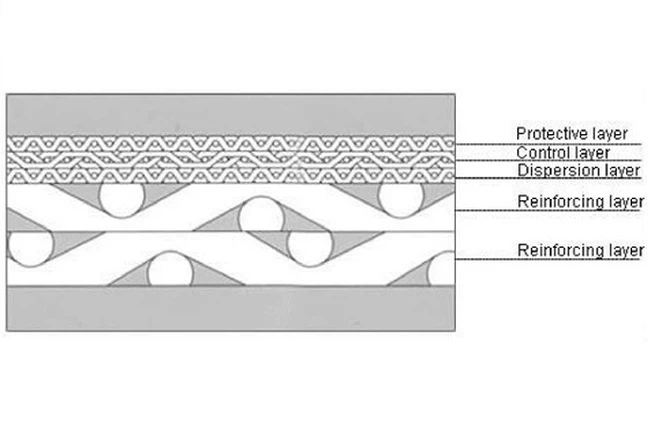

Structure:
Product Features:
- High strength and rigidity: extreme mechanical strength and pressure tolerance, can be machined, welded and assembled,
- Uniform and stable precision: consistent filter property in various media, without apertures changing during operation.
- Widely service environment: can be continuously in temperature ranging from -200℃ to 600℃ and filtering in acid and alkali conditions.
- Cleanable: backwash easily, and reused with longer service span, it can be cleaned by means of ways, such as backstream, filtration liquid, ultrasonic, dissolution and baking.
Product Technical Parameters:
|
TYPE |
Nominal Micron um |
Working Micron um |
Air Permeability L/min*cm2*pa |
Bubble Point Pressure Pa |
|
SW1 |
1 |
6-7 |
|
5300-6000 |
|
SW2 |
2 |
8-9 |
(1-6)*10-4 |
4300-5000 |
|
SW5 |
5 |
11-13 |
(6-10)*10-4 |
3000-3700 |
|
SW10 |
10 |
16-18 |
(6-10)*10-4 |
2700-3300 |
|
SW15 |
15 |
24-26 |
(1-6)*10-3 |
2000-2600 |
|
SW20 |
20 |
28-32 |
(1-6)*10-3 |
1800-2300 |
|
SW25 |
25 |
34-36 |
(6-10)*10-3 |
1400-1900 |
|
SW30 |
30 |
40-45 |
(6-10)*10-3 |
1200-1700 |
|
SW40 |
40 |
50-55 |
(1-6)*10-2 |
1000-1500 |
|
SW50 |
50 |
71-80 |
(1-6)*10-2 |
900-1200 |
|
SW70 |
70 |
86-95 |
(6-10)*10-2 |
700-1100 |
|
SW100 |
100 |
110-120 |
≥5*10-2 |
650-1000 |
|
SW150 |
150 |
|
≥5*10-2 |
|
|
SW200 |
200 |
|
≥8*10-2 |
|
|
SW300 |
300 |
|
≥8*10-2 |
|
More product types:

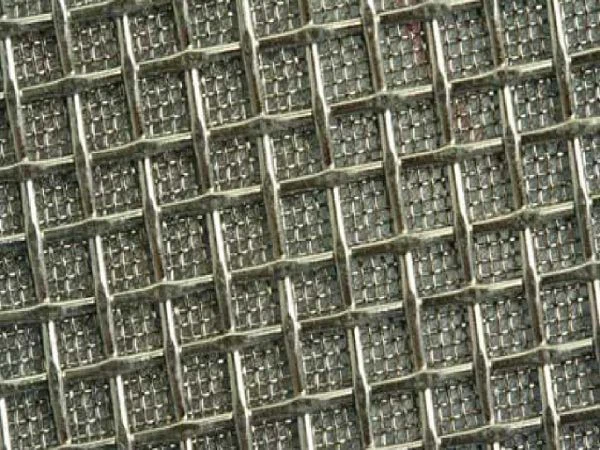

Six layers sintered woven wire mesh, it is added one layer wire mesh of 8 mesh or 12 mesh square wire mesh on original standard five-layers sintered wire mesh, it has better strength and performance;

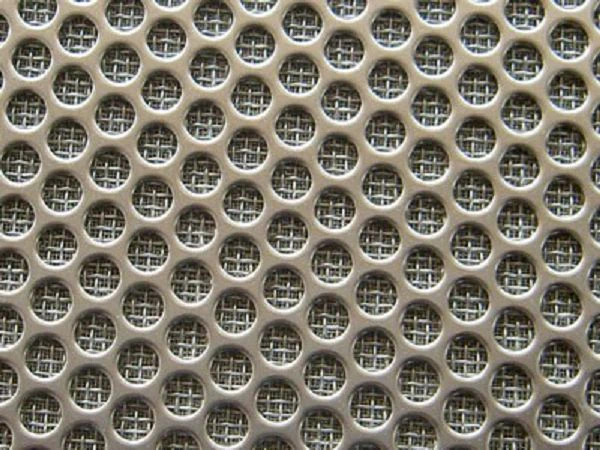

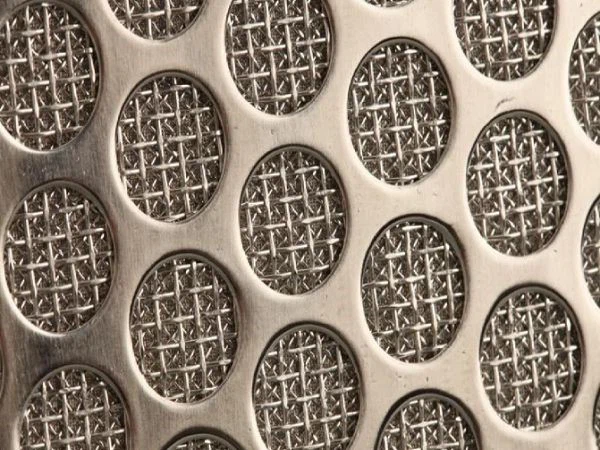

Sintered Woven Wire Mesh With Perforated Sheet is made by taking several layers of woven wire mesh and sintered them to a layer of perforated metal

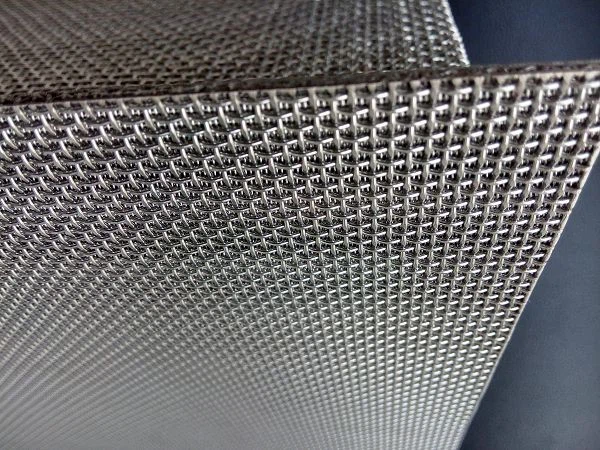

Multi-layers sintered woven wire mesh is composed of multi-layer stainless steel wire mesh, which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. It has excellent performance such as excellent filtration precision, filtration resistance, mechanical strength, wear resistance, heat resistance, cold resistance and processability, it is more ideal for the demand for pressure strength and filtration precision uniform.
