Rotary Drum Screen

Rotary Drum Screen

Product Name: Rotary drum screen, wedge wire screen drum
Material: SS316, SS904L, Duplex 2205 and etc. Or customized according to requirment
Diameter: 100mm-3000mm, or customized according to request
Length: max 6500mm
Filter Micron: 25um-3000µm
Structure: Cylinderical Drum type
Send Inquiry
Description

Product Introduction

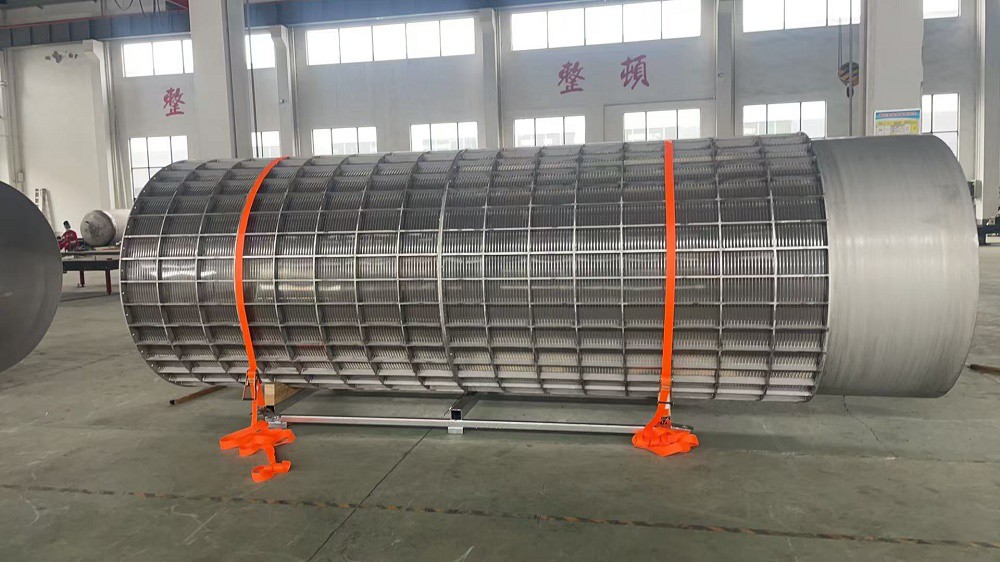

The rotary drum screen is a rotating wedge-shaped wire mesh. It is made of stainless steel wedges that are welded together to form a rotating cylinder.

Currently, this screen is mainly used in sugar factories.

During operation, it rotates slowly, utilizing centrifugal force and gravity to efficiently separate sugarcane juice from solid impurities such as sugarcane stalks and fibers. It is a key equipment in modern sugar production that replaces the earlier static arc-shaped sieve, solving the problem of blockages.




Features and Applications



1

No clogging

When it is keeps rotating, and the sieve surface is constantly washed by the materials and the external spray system. Sugarcane residue is difficult to get stuck in the gaps, ensuring the continuity of filtration. There is no need for frequent shutdown for cleaning, thus improving production efficiency.

2

High filtration accuracy

It is with a wedge-shaped wire structure, the gaps are uniform, with an accuracy of 0.025mm - 10mm, so that the rotary drum screen can effectively separate materials of different particle sizes, and can be used for both coarse screening for debris removal and fine filtration.

3

Strong structure

All the wires are welded to the support bars, making the overall structure extremely rigid, with good roundness and a smooth surface. These features enable the drum screen to withstand the continuous operation load of sugar factories and not deform or break easily during long-term operation.

4

Corrosion-resistant

It is made of food-grade stainless steel such as 304 and 316L, fully meeting food hygiene requirements. It can withstand the weak acidic environment of sugarcane juice and has a long service life.

5

Flexible customization

The diameter of the rotary drum screen(100mm - 2500mm), length (up to 6500mm), and sieve gap size can all be customized according to the production capacity and process requirements of sugar factories. It can be adapted to the production lines of different-sized sugar factories.
